MX10 common brake debugging(spring brake)
2021/4/8??????Click:

MX10 common brake debuggingspring brake

Warning

Ensure the car is locked. Adjust one brake each time.

1.1       Inspect brake travel


Step Action
Remark
1

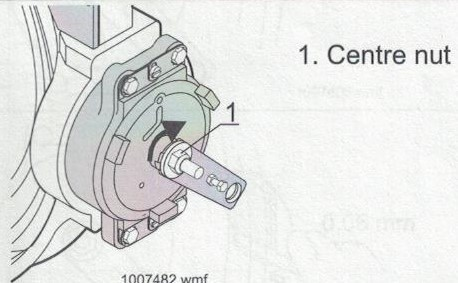

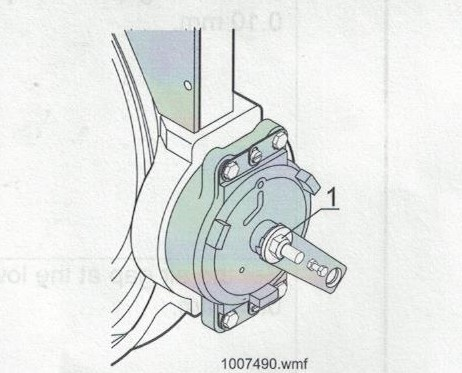

To totally open the brake by tighten the bottom of the center nut.

1. center nut

2

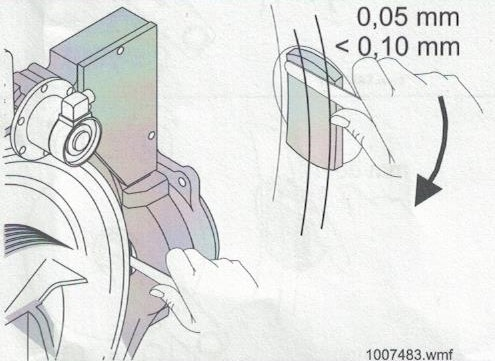

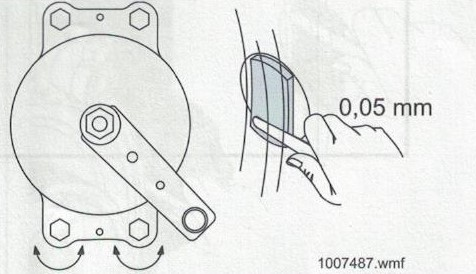

To test the gap between the brake shoe and the brake drum surface of sheave by glide of the feeler

If the gap is



  0.05mm but less than 0.1mm, you can close the brake.

Jump to step 1.3




 Larger than 0.1mm or less than 0.05mm,then adjust the gap again.

  (following instruction of step 1.2





1.2 Inspect brake travel


Step
Action
Remark
1

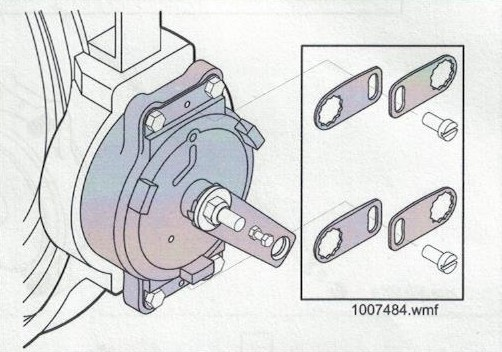

Remove the tighten shim on the brake adjusting bolt.

2

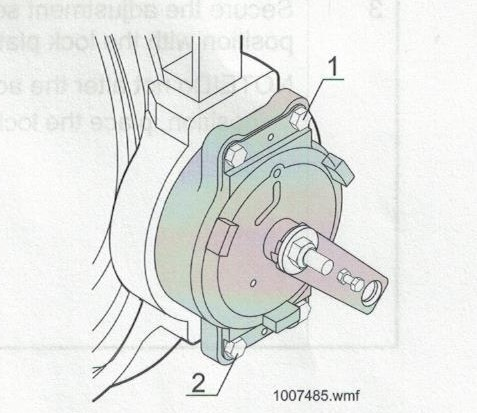

To adjust the gap by turning the two adjusting bolt, one side each time.



Adjusting bolt is sensitive.1/4 turn equals to gap adjustment of 0.25mm

1. adjust upper bolt

2. adjust lower bolt
2

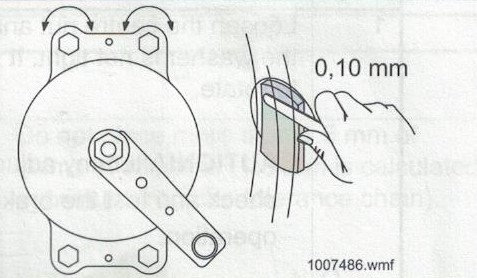

Adjust the upper gap to 0.1mm

2

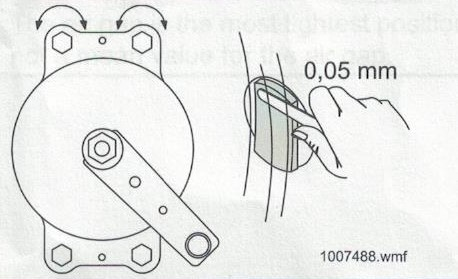

Adjust the lower gap to 0.05mm

2
Adjust the upper gap to 0.05mm

3

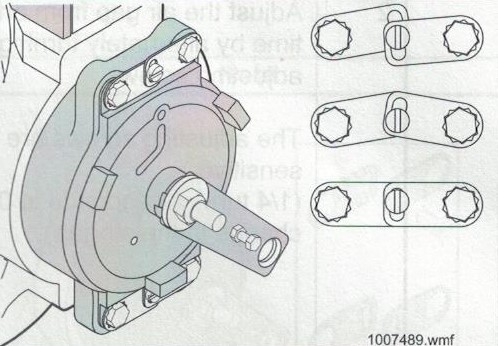

Use tighten shim to lock the adjusting nut.

NoteDon’t change the position of the adjusting nut, put the tighten shim at the right place.


1.3       Close brake

Step
Action
Remark
1

Loose the center nut and ensure the shim is not pressed tight and is able to turn freely.



NoteCheck and test the brake release device after every adjustment.

1. center nut
